CSS Grid Layout Module

The CSS Grid Layout Module offers a grid-based layout system, with rows and columns, making it easier to design web pages without having to use floats and positioning.

Example Grid Layout

Grid Elements​

A grid layout consists of a parent element, with one or more child elements.

<div class="grid-container">
	<div class="grid-item">1</div>
	<div class="grid-item">2</div>
	<div class="grid-item">3</div>
	<div class="grid-item">4</div>
	<div class="grid-item">5</div>
	<div class="grid-item">6</div>
	<div class="grid-item">7</div>
	<div class="grid-item">8</div>
	<div class="grid-item">9</div>
</div>

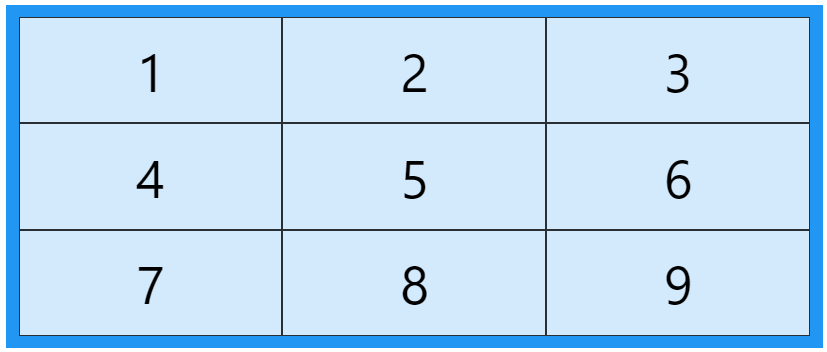

Example Grid Layout Elements

Display Property​

An HTML element becomes a grid container when its display property is set to grid or inline-grid.

.grid-container {
	display:  grid;
}
.grid-container {
	display:  inline-grid;
}

All direct children of the grid container automatically become grid items.

Grid Columns​

The vertical lines of grid items are called columns.

Example Grid Layout Columns

Grid Rows​

The horizontal lines of grid items are called rows.

Example Grid Layout Rows

Grid Gaps​

The spaces between each column/row are called gaps.

Example Grid Layout Gaps

You can adjust the gap size by using one of the following properties:

  • column-gap
  • row-gap
  • gap

column-gap property​

The column-gap property sets the gap between the columns:

.grid-container {
	display:  grid;
	column-gap:  50px;
}

row-gap property​

The row-gap property sets the gap between the rows:

.grid-container {
	display:  grid;
	row-gap:  50px;
}

gap property​

The gap property is a shorthand property for the row-gap and the column-gap properties:

.grid-container {
	display: grid;
	gap: 50px 100px;
}

The gap property can also be used to set both the row gap and the column gap in one value:

.grid-container {
	display: grid;
	gap: 50px;
}

Grid Lines​

The lines between columns are called column lines.

The lines between rows are called row lines.

Example Grid Layout Lines

note

Refer to line numbers when placing a grid item in a grid container.

Examples​

Place a grid item at column line 1, and let it end on column line 3:

.item1 {
	grid-column-start:  1;
	grid-column-end:  3;
}

Place a grid item at row line 1, and let it end on row line 3:

.item1 {
	grid-row-start:  1;
	grid-row-end:  3;
}

All CSS Grid Properties​

PropertyDescription
column-gapSpecifies the gap between the columns
gapA shorthand property for the row-gap and the column-gap properties
gridA shorthand property for the grid-template-rows, grid-template-columns, grid-template-areas, grid-auto-rows, grid-auto-columns, and the grid-auto-flow properties
grid-areaEither specifies a name for the grid item, or this property is a shorthand property for the grid-row-start, grid-column-start, grid-row-end, and grid-column-end properties
grid-auto-columnsSpecifies a default column size
grid-auto-flowSpecifies how auto-placed items are inserted in the grid
grid-auto-rowsSpecifies a default row size
grid-columnA shorthand property for the grid-column-start and the grid-column-end properties
grid-column-endSpecifies where to end the grid item
grid-column-gapSpecifies the size of the gap between columns
grid-column-startSpecifies where to start the grid item
grid-gapA shorthand property for the grid-row-gap and grid-column-gap properties
grid-rowA shorthand property for the grid-row-start and the grid-row-end properties
grid-row-endSpecifies where to end the grid item
grid-row-gapSpecifies the size of the gap between rows
grid-row-startSpecifies where to start the grid item
grid-templateA shorthand property for the grid-template-rows, grid-template-columns and grid-areas properties
grid-template-areasSpecifies how to display columns and rows, using named grid items
grid-template-columnsSpecifies the size of the columns, and how many columns in a grid layout
grid-template-rowsSpecifies the size of the rows in a grid layout
row-gapSpecifies the gap between the grid rows
